Pleated filter cartridges

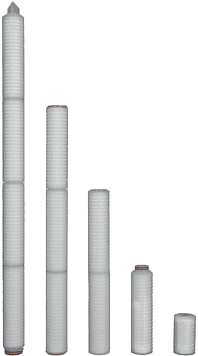

MPXPL filter cartridges are pleated cartridge filters
They are characterized by large filter area, high filtration efficiency and capacity for contamination.
MPXPL is constructed from 100% polypropylene which suits a wide range of applications such as chemicals, water, beverages etc.MPXPL filter cartridges are pleated cartridge filters characterized by large filter area, high filtration efficiency and capacity for contamination.
Filter specification
Material
Polypropylene
Core material
Polypropylene, acid resistant steel AISI316
Type of end
double open DOE, single open, double O-ring type 222 or type 226, flat or FIN closed ends

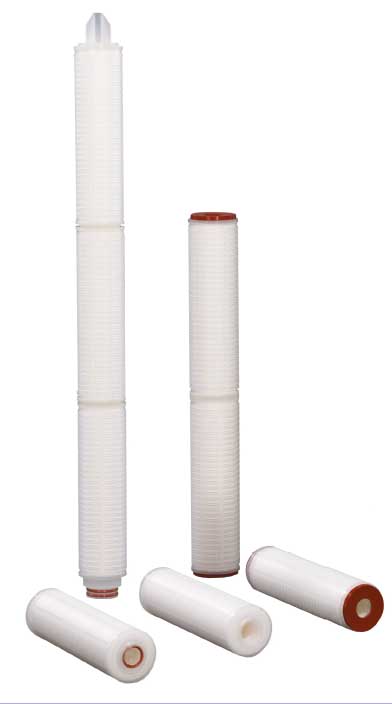

CESPL filter cartridges are pleated cartridge filters
CESPL cartridges are made of hydrophilic membranes, constructed with polyethersulfone media.
The cartridges are suitable for liquid filtration in the food industry, chemical industry, or other applications where high separation requirements are essential.
Available in sizes 5″ to 40″ with a separation range of 0.04 to 10 microns.
Filter specification
Material
Polypropylene
Core material
Polypropylene
Type of end
double open DOE, single open, double O-ring type 222 or type 226, flat or FIN closed ends
CTEPL filter cartridges are pleated cartridge filters
CTEPL cartridges are made of hydrophobic PTFE membranes, for food and beverages & chemical processes.
Available in sizes 5″ to 40″ with a separation range of 0.1 to 1.2 microns.
Filter specification
Material
Hydrophobic PTFE
Core material
Hydrophobic PTFE
Type of end
Double open DOE, single open, double O-ring type 222 or type 226, flat or FIN closed ends
